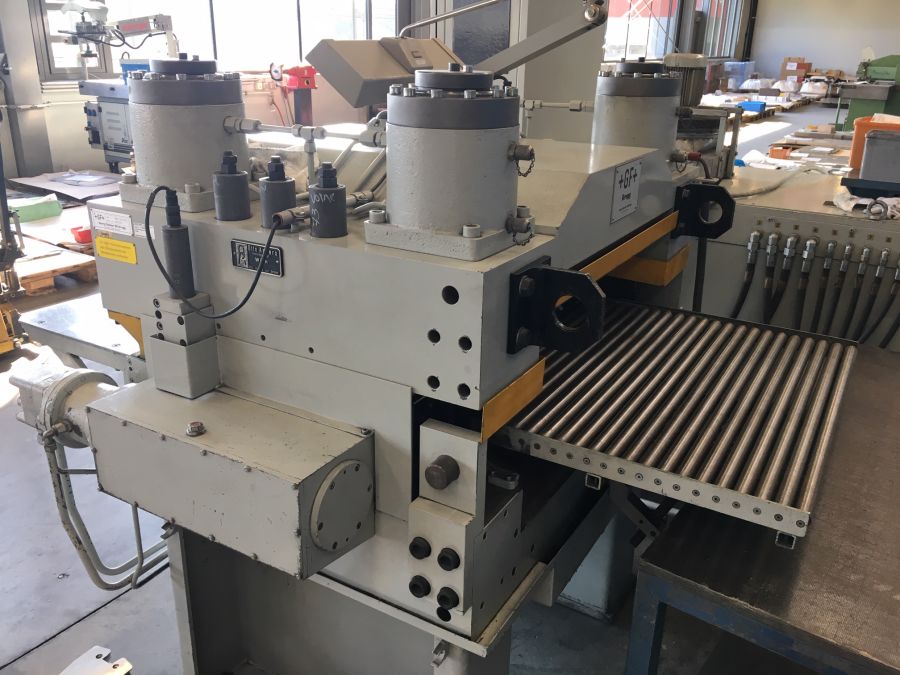

Part Leveling Machine

Type: GF 30/750



  • Passing width: 750 mm
  • Material thickness: 0.3 to 7.0 mm



Machine data:

  • Leveling speed: 4 to 15 m/min
  • Number of leveling rollers: 19
  • Leveling roller diameter: 30 mm
  • Workpiece inlet height: 900 mm
  • Machine weight: approx. 5 tons
  • Power requirement: 16 kW (connected load)



Accessories:

  • Inlet table
  • Outlet table
  • Cleaning device for the leveling rollers and supporting rollers

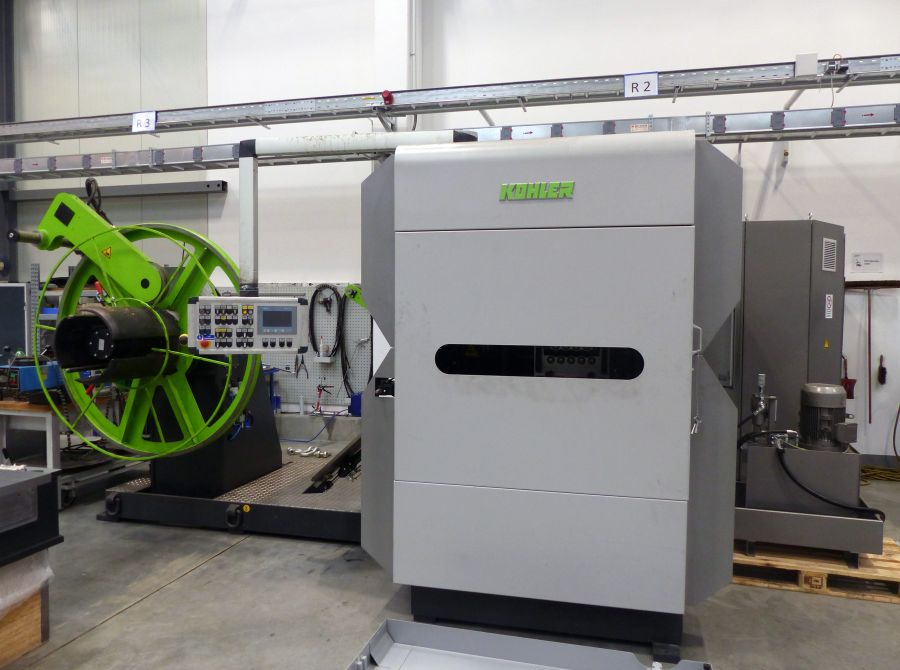

Strip Feeding Line

Machine No.: 60132

Type: 50.600/9 - 5000.1 H - BÜ 5





Year of manufacture: 2015

  • Strip width: 50 - 600 mm
  • Strip thickness: 0.5 - 8 mm depending on the yield point



Line details:

  • Single coiler, load capacity 5000 kg
  • Hydraulic auxiliary drive
  • Expansion range: 460 - 530 mm
  • Coil outer diameter: 1600 mm
  • Pressure roller with drive
  • Leading-in device
  • Advanced quick change device for leveling rollers and supporting rollers



Options:

  • Strip transfer table
  • Coil loading car

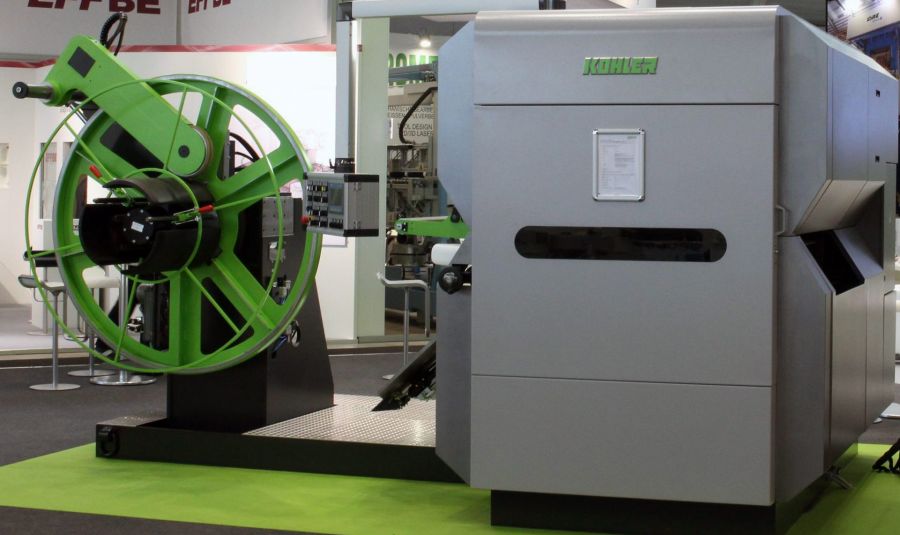

Strip Feeding Line

Machine No.: 40959

Type: 18.260/19-2000.2H



  • Passing width: 260 mm
  • Material thickness: 0.3 - 2.0 mm
  • Coiler capacity: 2000 kg per side
  • Expansion range: 360 - 430 mm
